Microsonic Systems: The sound of discovery

Genomics and Drug Discovery: HENDRIX SM100

Applications – DNA fragmentation for NGS library preparation.

Provides high quality sample fragments from 300 bp to 1.5 Kb in single device
Tight fragment distribution for optimal yield and sequencing results
Automation allows up to 8 samples to be processed sequentially at the touch of a button - maximizes walk-away convenience
Flexibility to shear each sample to same or different shear sizes in a single run
Utilizes low cost Thermo Matrix 2D-barcoded storage tubes for decreased consumable cost
Integrated barcode reader allows for optimal sample tracking
Optimized for 50 µL of starting volume, significantly reduces sample consumption
Validated pre-programmed methods for size specific shearing

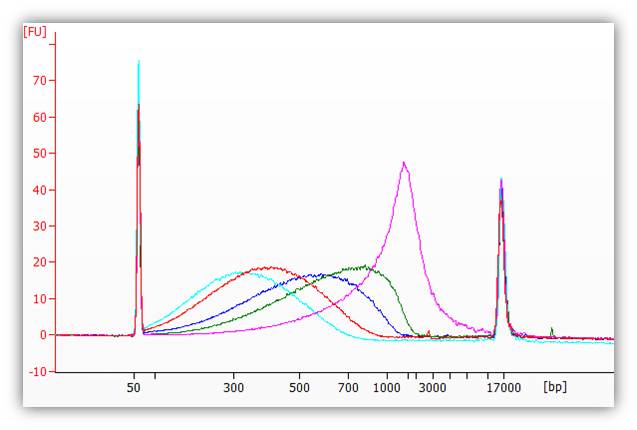

E. coli DNA samples sheared to target fragment sizes of 300 bp, 400 bp, 600 bp, 800 bp and 1.5 Kb by specifying the “Dial a DNA Fragment” settings.


HENDRIX SM100 ultrasonic fluid processor Applications – secondary compound recovery in low-volume tubes and microplates, assay mixing, bead suspension. 2010 *R&D 100 Award* winner Processes samples in 24-, 48-, 96-, 384-, 1536-well formats Compound solubilization in minutes Isothermal thawing of frozen samples in minutes Open deck for easy access to microplates and vials Flexible user interface Small footprint fits lab bench top easily Automation friendly Click Here for HENDRIX SM100 Product Brochure Click Here for HENDRIX SM100 applications
